Raster to Vector image conversion

Raster 2 Vector purple_top_right.gif (92 bytes)
Standalone Raster 2 Vector converter

Raster2Vector converts Bitmaps, Jpeg, TIF and PCX graphic files to DXF files or vector files consisting of lines, arcs and circles. Now files produced by your scanner software or raster image editing programs can be converted to vector files DXF or TXT. Advanced settings let you control the way the images will be converted. Once created, the DXF file can be used in any of a number of various programs that read standard AutoCAD DXF files including Advanced System 3000.

Raster2Vector is extremely easy to use. When the program comes up, there's only one screen... and it's preset and ready to go! All the user needs to do is provide the file name to open and the DXF or TXT file is quickly created.


  • Opens Bitmap files
  • Opens Jpeg Files
  • Opens Tif Files
  • Opens PCX Files
  • Save as DXF File
  • Save as Text File
  • Outline Outside Of Raster Images
  • Create Center Line within Raster Images
  • Control Angle Of Lines When Creating Centerline
  • Several Control Settings To Adjust The Conversion Process
  • Runs on Windows

Price $199

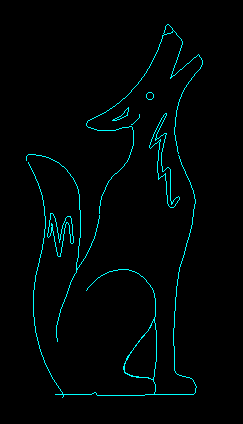

[click to enlarge]
